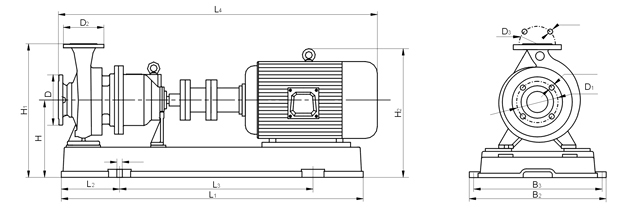

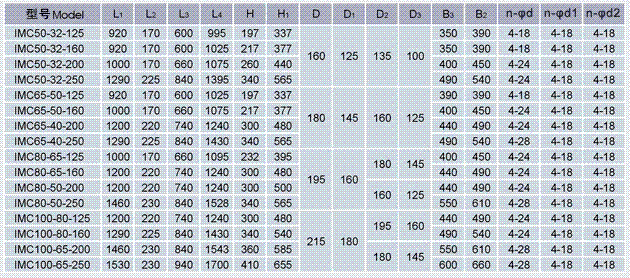

CIH型不銹鋼磁力化工泵安裝尺寸圖

時間：2012/10/28 來源：浙江揚子江泵業有限公司

IMF(CIH)型磁力傳動離心泵是我公司新研究開發的新型完全無泄漏耐腐蝕泵，其技術指標與國外同類產品水平相當。性能、尺寸和標記符合ISO2858/GB5662/DIN24256標準。外形安裝尺寸與IH型泵一致，方便用戶
IMF(CIH)型磁力傳動離心泵適用與石油、化工、環保、制藥、食品、造紙、印染、電鍍、污水處理等行業，是易燃、易爆、易汽化、有毒、稀有貴重和各種和各種腐蝕液體輸送的理想設備。

IMF(CIH) series magnetic-force drive centrifugal pump is a new type entirely non-leakage erosion-proof pump developed by our company, its technology reaches the level of the con-generic products from overseas, and the capability, dimension and mark are in conformity with ISO2858/GB5662/DIN24256. Its external installation dimension is the same with that of IH type pump, and is convenient to replace and use.
IMF(CIH) series magnetic-force drive centrifugal pump is applied in the fields such as petroleum, chemicals, environ-mental protection, pharmacy, foodstuff, papermaking, printingand dyeing, electroplating, sewage treatment etc., and is the ideal equipment to transfer the flammable, explosive, easily-evaporization, poisonous, rare or erosive liquids.

【IMF(CIH)型不銹鋼磁力化工泵】型號意義：

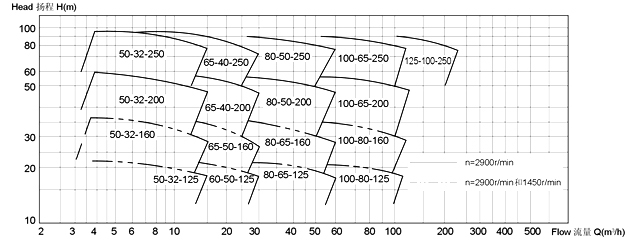

【IMF(CIH)型不銹鋼磁力化工泵】性能參數：

型號	流量 Q (m^3/h)	揚程 H (m)	轉速 n (r/min)	軸功率 Pa (kw)	效率 η (%)	氣蝕余量 (NPSH)r m	配帶電動機型號功率
							輸送介質比重 g/cm^3
							≤1	≤1.3	≤1.84
IMF50-32-125	7.5 12.5 15	22 20 18.5	2900	1.49 1.62 1.63	30 42 43	3.5 3.5 4.0	Y YB90L-2 2.2	Y YB100L-2 3.0	Y YB112M-2 4.0
IMF50-32-160	7.5 12.5 15	34 32 29	2900	2.48 2.79 2.96	28 39 40	3.5 3.5 4.0	Y YB100L-2 3.0	Y YB112M-2 4.0	Y YB132S1-2 5.5
IMF50-32-200	7.5 12.5 15	52.5 50 48	2900	5.10 5.49 6.13	21 31 32	2.5 2.5 3.0	Y YB132S2-2 57.5	Y YB132S2-2 7.5	Y YB160M1-2 11
IMF50-32-250	7.5 12.5 15	22 20 18.5	2900	9.57 10.89 13.32	17.5 25 26	3.5 3.5 4.0	Y YB160M2-2 15	Y YB160L-2 18.5	Y YB180M-2 22
IMF65-50-125	15 25 30	22 20 18.5	2900	2.25 2.67 2.91	40 51 52	3.5 3.5 4.0	Y YB100L-2 3.0	Y YB112M-2 4.0	Y YB132S1-2 5.5
IMF65-50-160	15 25 30	34 32 29.5	2900	4.34 5.07 5.48	32 43 44	3.5 3.5 4.0	Y YB132S1-2 5.5	Y YB132S2-2 7.5	Y YB160M1-2 11
IMF65-40-200	15 20 30	53 50 47	2900	8.66 9.20 10.1	25 37 38	3.5 3.5 4.0	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L1-2 18.5
IMF65-40-250	15 25 30	82 80 78.5	2900	13.4 14.72 16.88	25 37 38	3.5 3.5 4.0	Y YB160L-2 18.5	Y YB180M-2 22	Y YB200L1-2 30
IMF65-40-315	15 25 30	127 125 123	2900	27.33 27.44 30.44	19 31 33	3.5 3.5 4.0	Y TB200l2-2 37	Y YB225M-2 45	Y YB280S-2 75
IMF80-65-125	30 50 60	22.5 20 18	2900	4.48 5.24 5.55	41 52 53	4.0 4.0 4.5	Y YB132S1-2 5.5	Y YB132S2-2 7.5	Y YB160M1-2 11
IMF80-65-160	30 50 60	34 32 29	2900	7.72 9.08 9.67	36 48 49	4.0 4.0 4.5	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L1-2 18.5
IMF80-50-200	30 50 60	53 50 47	2900	12.03 14.80 16.34	36 46 47	4.0 4.0 4.5	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L1-2 18.5
IMF80-50-250	30 50 60	84 80 75	2900	19.06 23.68 26.07	36 46 47	4.0 4.0 4.5	Y YB200L1-2 30	Y YB200L2-2 37	Y YB225M-2 45
IMF80-50-315	30 50 60	128 125 123	2900	36.05 40.56 44.75	29 42 45	4.0 4.0 4.5	Y YB250M-2 55	Y YB280S-2 15	Y YB280M-2 90
IMF100-80-125	60 100 120	23 20 16.5	2900	8.35 9.73 9.46	45 56 57	4.0 4.0 4.5	Y YB160M1-2 11	Y YB160M2-2 15	Y YB160L-2 18.5
IMF100-80-160	60 100 120	35 32 28	2900	12.43 15.85 16.34	46 55 56	4.0 4.0 4.5	Y YB160L-2 18.5	Y YB180M-2 22	Y YB200L1-2 30
IMF100-65-200	60 100 120	54 50 47	2900	21.01 25.69 28.44	42 53 56	4.0 4.0 4.5	Y YB200L1-2 30	Y YB200L2-2 37	Y YB225M-2 45
IMF100-65-250	60 100 120	89 80 74.5	2900	37.98 45.39 49.69	37 48 49	4.0 4.0 4.5	Y YB255M-2 45	Y YB250M-2 55	Y YB280S-2 75
